Produktionslinie für frische Kartoffelchips

Produktinformation

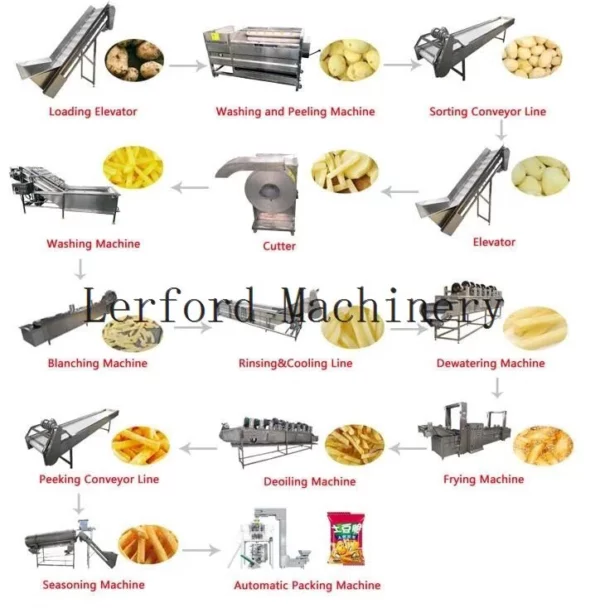

Flussdiagramm der Produktionslinie für frische Kartoffelchips:

Materialien der Produktionslinie Kartoffelchips

Vom Input—-Schälen—-Sortieren—Heben &Vibration—Schneiden—-Waschen—-Blanchieren—–Lufttrocknen—-Braten—Entölen—-Würzen—–Sortieren—–(Verpacken).

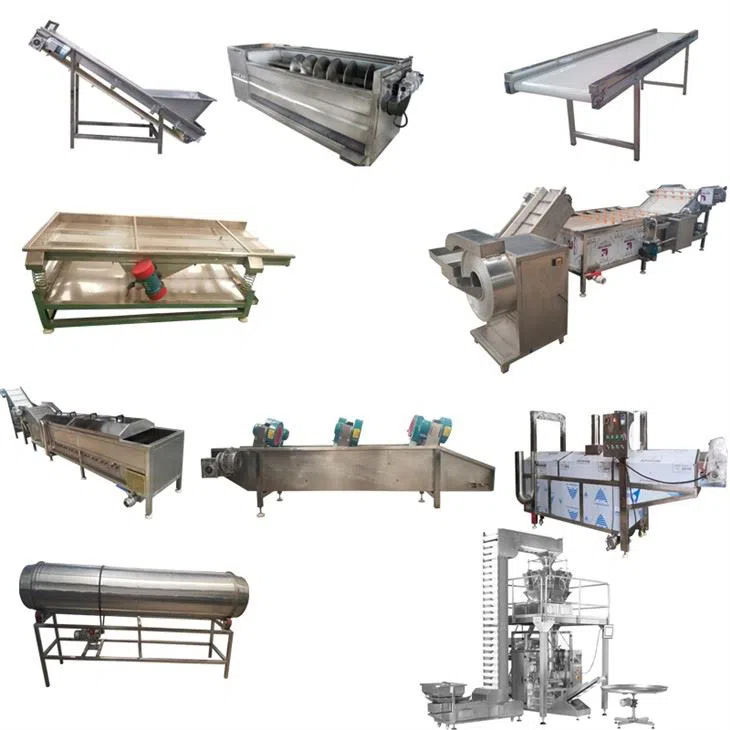

Maschinen, die für die Produktionslinie für frische Kartoffelchips verwendet werden:

1) Hebezeug 2) Sparschäler 3) Materialsortierband 4) Hebezeug & Vibrator 5) Schneidemaschine 6) Kartoffelwaschmaschine 7) Blanchiermaschine 8) Lufttrockner 9) Durchlauffritteuse 10) Entölungsband 11) Würzmaschine 12) Sortierband 13) Mehrkopfverpackungsmaschine.

Technische Parameter der Maschinen für die Produktionslinie für frische Kartoffelchips:

Detailed introduction of machines of fresh potato chips production line:

1. Hoister

1) Mesh belt uses304 SUS food-grade stainless steel.

2) Supporting frame is 304 SUS 50*50mm square tubes.

3) 2mm of thickness stainless steel.

4) Motor is frequency conversion speed adjustment.

Automatically lift the potatoes. Labor-saving and durable is used.

2. Peeler

1)use SUS 304 food-grade stainless steel.

2)Rollers are made from wearable, anti-acid corrosion, and anti-alkali corrosion materials. Durable in using potato chips making the machine fully automatic.

3)Rollers are designed in a swinging shape, with no dead angle in removing the peels.

4)The machine adopts high precision one-time laser symmetrical cutting, ensuring the symmetrical structure of the machine body. Easy and convenient in maintenance with a long lifespan.

5)Spiral pushrod design. Automatic discharging and adjustable discharging time.

6)Top part has a water spraying device. The pipeline is stainless steel. The thickness is a 2mm stainless steel plate.

3. Sorting conveyor

1)This conveyor is used to sort out and conveyor the inappropriate potatoes. There are materials recycling ports on the two sides of the conveyors. The bottom part of the recycling port has to convey structure.

2) Food-grade PVC mesh belt. Durable in use and no damage to the potatoes. Mesh belt speed frequency is adjustable.

3)Supporting frame is 40*40mm square tubes. The side plate thickness is 2mm stainless steel 304.

4)Materials hoister+Vibrator

1)Mesh belt uses304 SUS food-grade stainless steel.

2)Supporting frame is 304 SUS 50*50mm square tubes.

3)2mm of thickness stainless steel.

4)Motor is frequency conversion speed adjustment.

5)Discharging part has a water washing port.

5. Potato slicer

1)sizes of the potato chips: 2MM,6MM,8MM,10MM,12MM,15MM.

2). Adopt SUS 304 food-grade material.

3). Reasonable machine structure. The input port is specially designed to avoid being cut.

4). Easy to operate, convenient in cleaning, labor-saving, and saving cost.

6. air bubble washing machine

The air bubble making machine is made of stainless steel. strong and durable in use. And there is no damage to the raw materials. The machine can save labor and water with stable and reliable performance. The washed materials are triple as clean as the normally manual cleaning. Using a high-pressure water current and air bubble occur device to strike the surface of the raw materials, the energy produced during the rupture of the air bubble and materials contact will have a striking and washing effect on the surface of the materials and then wash the materials into cleaning condition fully automatic potato chips production line. And the brushes installed in the machine can effectively clean the hair in the materials. The high-pressure water current makes materials into the rolling state, getting rid of the pesticide residue. the floating materials can flow out from the overflow tank. the sediments are discharged from the outlet.

7. Blanching machine

1) This machine is suitable for the washing of the seafood, fruits, vegetables, mushrooms, and root of the vegetables.

2) Inner body is a 3mm stainless steel 304 plate. No leakage of water. The exterior body is a 2mm stainless steel 304 plate.

3) Under the strike of the high-pressure water bubbles, materials are tumbled in the water, which can effectively separate the mud, sand, debris, and other materials. It has the features of great cleaning capacity, high washing efficiency, no damage to the materials, stable operation, and saving water resources. At the end section of the air bubble cleaning, bringing materials to the next section through the conveyor. In the conveying process, materials are sprayed and cleaned once time by the high-pressure water pump.

4) Pipelines are aligned horizontally. Water discharging ports are set on one side of the machine.

8. Air drying machine

5) Cooling the material by air. There are two sections of the mesh belt. Materials are got tumbled from the first section to the second section, ensuring two parts of the materials can be dried.

6) Mesh belt is stainless steel spiral belt. Operation speed is manually controlled.

7) Centrifugal fan is 0.37kw. The side plate thickness is 2.5mm 304 stainless steel plate.

8) Stainless steel plate is installed under the mesh belt to ensure the floor is clean.

9. Frying line

9) The body of the fryer uses SS 304 material. The side plate uses a 4mm stainless steel plate. The bottom part uses a 5mm stainless steel plate.

10) Materials that can be fried are potato chips, French fries, and snacks.

11) Discharging oil cover and mesh frame can be lifted separately, which is easier to be cleaned.

12) Es gibt 4 Stück Temperaturkontrollpunkte, die die Temperatur jedes Abschnitts steuern. Elektrische Heizrohre aus Edelstahl.

13) Präzisions-Temperaturkontrollsystem stellt sicher, dass die Frittiermediumtemperatur zwischen ±2 ° C liegt.

10. Entölungsband

1) Mesh-Bandsteuerung ist Frequenzumwandlungsgeschwindigkeitssteuerung. Öl wird aus der Lufttrocknung entfernt. Die Seitenplattenstärke ist 2,5 mm Edelstahlmaterial.

2) Der untere Teil des Förderers hat die Ölaufnahmebox, um den Boden sauber zu halten.

3) Hocheffiziente geräuscharme Axialventilatoren werden hinzugefügt, um Öl schnell loszuwerden.

11. Würzmaschine

1) Der Entladungsteil ist eine gestanzte Platte aus Edelstahl, die dazu führen kann, dass das Pulver ausläuft.

2) Die Einwalzen-Aromamaschine kann Pulver automatisch sprühen. Hohe Kapazität, Gleichmäßigkeit beim Mischen von Materialien, automatische Entladung.

12. Sortierband

1) Das Maschenband ist ein lebensmitteltaugliches Spiralgewebeband aus Edelstahl SUS 304. Die Laufgeschwindigkeit wird manuell angepasst.

2) Stützrahmen ist 40 * 40mm Edelstahl Vierkantrohre.

13. Mehrkopf-Kartoffelchips-Verpackungsmaschine mit Stickstofffüllung

Verpackungsbeutel Größenbereich: (L) 50-300mm (B) 60-200mm

Leistung: 4kw

Spezifikation: 2180×1350×1700mm

Importiertes SPS-Computersteuerungssystem. HMI-Touchscreen-Panel erleichtert die Bedienung und das Ablesen

Ein präzises Verpackungsfolienfördersystem sorgt für die perfekte Verpackung der Maschine

Die automatische Alarmschutzfunktion realisiert kleinste Verluste

Ausgestattet mit einem Messsystem, das den gesamten Verpackungsprozess realisieren kann: wie Messen, Fördern, Füllen und Datumsdrucken.
