Maispuffmaschine

Maispuffmaschine kann Mais, Reis, Hirse, Weizen, Hafer, Gerste usw. als Zutaten verwenden. Der Effekt wird viel besser sein, wenn sich die Materialien in Pulver (Mehl) oder Grütze bilden.

Formen und Endprodukteder Maisbeutelmaschine:

Wir können viele Arten von Formen von Endprodukten aus Weizenpuffmaschine machen, auch akzeptieren anpassen. Wir senden 6 Arten von Formen kostenlos mit der Snack-Food-Puffing-Maschine.

TechnischeInformationen überdie Maispuffmaschine:

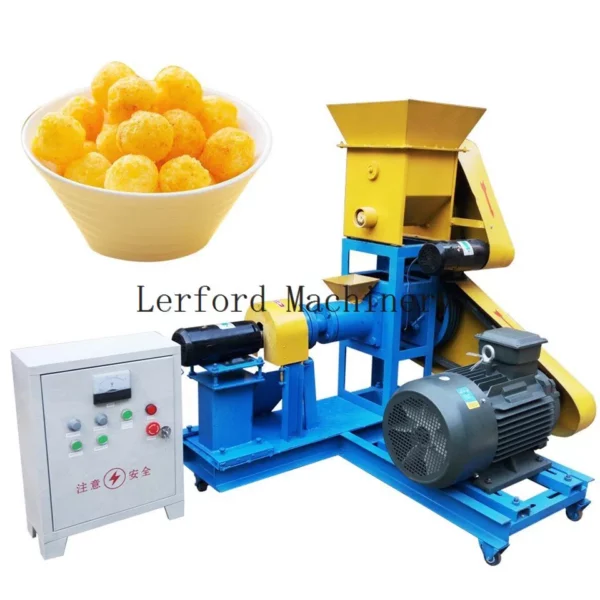

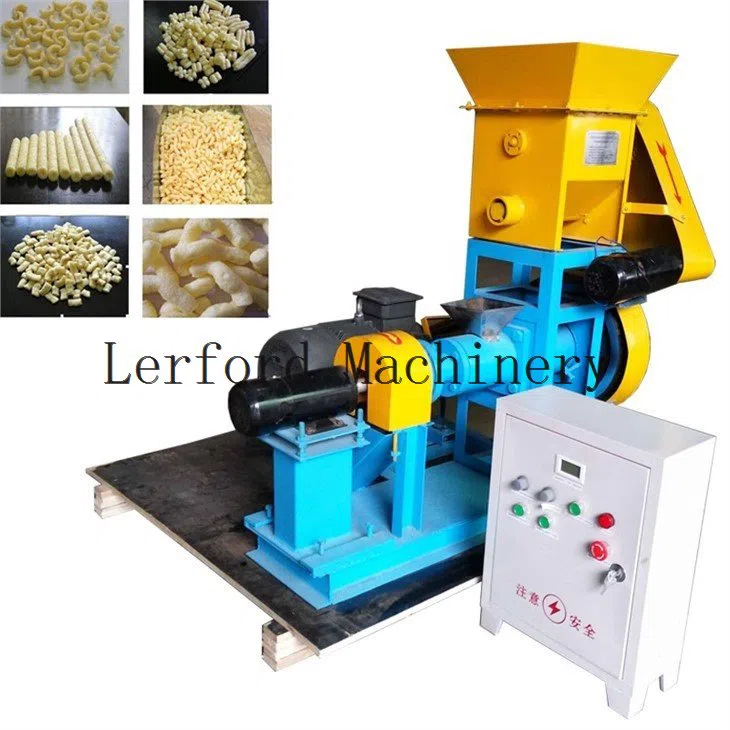

The main feature of the corn puff making machine:

1. The model design of the puff corn extruder machine is novel, the structure of the rice puff making machine is compact, and the production efficiency is high.

2. Reliable work, sturdy and durable, low failure rate, convenient operation, and maintenance.

3. Simple and convenient to use, stable transmission, and low noise.

4. The main components are made of special alloy materials through heat treatment, with long service life and low cost of producing feed.

5. Dry puffing process adopts a self-heating method without a steam system.

6. The screw design of puff making machine has a powerful self-cleaning function, and the screw groove can be cleaned by itself, so when changing the formula and product variety, there is no need to stop and clean it. The screw has a strong pumping effect, and the material sticks and diffuses. The speed is fast and the product quality is relatively stable.

7. The screw discharge nozzle adopts the modular 5-type design, which is easy to adjust and cheap.

8. It can be equipped with an automatic feeding system 3. The feeder is a horizontal conveying screw controlled by the latest switched reluctance speed regulating motor in the world, and the other end is connected with the extruder, which can be controlled by adjusting the feeding amount Control puffing output (quantitative feeding, and can effectively prevent material from arching).

9. Cutting system, the independent cutting device is easy and fast to connect with the body, variable speed cutting head, can easily adjust the cutting knife, can easily adjust the gap between the cutting knife and the template, and can prepare different templates according to needs. , to ensure the required material diameter and length, and produce products of different specifications and material shapes.

10. There is no need for adhesives to process the floating feed, and it can maintain stability in water for more than 2 hours.

11. It can process 8 round products of ￠1-20mm (templates can be customized according to needs).

12. The main shaft is a combined structure, and the 6-purpose extension shaft can be adapted to the puffing processing of different raw materials.

13. Small and medium-sized equipment is especially suitable for use in scientific research institutions, special breeding farms, or small and medium-sized feed factories.

14. Dry and wet dual-use, in the single-screw 7 puffing equipment above 30KW, a conditioner can be added to wet puffing, and both have the ability of dry and wet dual-use.

main parts

The screw of the corn puff making machine:

It is the main part of the extruder. The parameters of the screw structure include diameter, pitch, root diameter, helix angle, and blade section structure. The length-diameter ratio of the extrusion parts and the gap between the screw and the inner wall of the extruding cavity also have a great influence on the performance of the extruder.

Discharge die of corn puff making machine:

It is the final level for the product to pass through the extruder. It has a great influence on the shape, texture, density, appearance, characteristics of the product, and the output of the extruder. The bearing housing part is mainly composed of bearing housing, the main shaft, bearing, bushing, left and right end caps, sealing ring, and groundnut. The oil filter cooling system is mainly composed of an oil pump, cooler, oil filter, valve, connecting pipe, and so on.

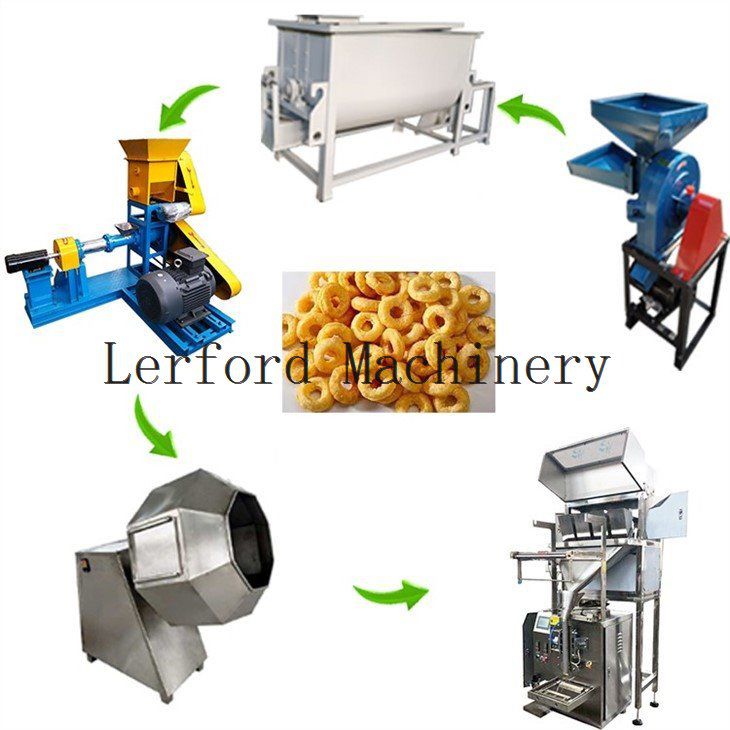

We have the full line production of corn puff making machines, welcome to contact us and discuss more!
